Seal Repair Kit with Bronze Backups

Ref. no. : 1-11135, 001198-1,
TL-001001-1

Check Valve Repair Kit

Ref. no. : 1-11282, 015866-1,
010642-1, TL-001004-1

Bleed-down Valve Repair Kit

Ref. no. : 1-11331, 004694-1,
TL-001009-1

High-pressure Cylinder

Ref. no. : 1-11117, 007038-3,
TL-001002-3

Low-pressure Seal Repair Kit, ESL

Ref. no. : 1-11281, 010641-1,
TL-001006-1

Check Valve Insert

Ref. no. : 1-11230, 004382-1 /
TL-001017-1

HP Seal Repair Kit without Backups

Ref. no. : 1-11467

Check Valve Outlet Poppet

Ref. no. : 1-11228, 005917-1 /
TL-001016-1

Check Valve Body

Ref. no. : 1-11115, 004383-3 /
TL-001003-3

Bleed-down Valve Body

Ref. no. : 1-11594, 001822-1 /
C-1000-1 / TL-001033-1

Piston Seal Kit

Ref. no. : 1-12386, B-1002-2,
TL-001018-1

Check Valve Spring

Ref. no. : 1-11234, WA1029

High-pressure End Cap

Ref. no. : 1-11420, 321276-1 /
TL-001010-1

Backup Seal Sleeve

Ref. no. : 1-11365, B-1002-2 /
TL-001018-1

Check Valve Assembly

Ref. no. : 1-11421, 010559-3

Guide Bushing, End Bell

Ref. no. : 1-12974, B-1040-2

Check Valve O-ring, -125

Ref. no. : 1-11679-125,
A-0275-125

Spring-energized Rod Seal

Ref. no. : 1-12340, A-11275

Low-pressure Cylinder
with Chrome-plated ID

Ref. no. : 1-11284, C-1000-1 /
TL-001012-1

Outlet Body

Ref. no. : 1-11231, C-1313-1 /
TL-001007-1

Actuator Assembly, Electronic Shift

Ref. no. : 1-12378, B-8346-1

Bleed-down Valve Assembly

Ref. no. : 1-11480, C-5841-1 /
TL-001011-1

Seal, 7/8 in.

Ref. no. : 1-11076, 004406-1,
TL-001015-1, 35373

Sensor Assembly, Electronic Shift Negative-positive-negative shifting, normally open

Ref. no. : 1-12357, 011275-1

Check Valve Repair Kit, Hybrid

Ref. no. : 1-12656, 302003-2

Firing Pin, Electrical Shift

Ref. no. : 1-11470, B-1702-1

Firing Pin, Mechanical Shift

Ref. no. : 1-11469, 002226-1

Hydraulic Piston

Ref. no. : 1-11438, 007026-1 /
TL-001013-1

Hoop

Ref. no. : 1-11077, 004407-1,
TL-001014-1

T-Seal Kit

Ref. no. : 1-11675, A-00251-18

O-ring, -014

Ref. no. : 1-11679-014, A-0275-014

Actuating Plunger

Ref. no. : 1-12724, B-1007-1

Spacer Oil Seal

Ref. no. : 1-11468, 010276-1,
TL-001027-1

Poppet Spring

Ref. no. : 1-11234, A-1606

Compression Spring, Outer

Ref. no. : 1-12792, A-1012

Compression Spring, Inner

Ref. no. : 1-12791, A-1713

Mechanical Shift Guide Cable, Right

Ref. no. : 1-12802, C-5461-1

Ceramic Plunger, .875 in. (60K & 94K)

Ref. no. : 1-11309, 010253-1,
TL-001005-1

End Bell, Left

Ref. no. : 1-11433, 007303-2,
TL-001008-2

End Bell, Right

Ref. no. : 1-11432, 007303-1 /
TL-001008-1

Inlet Poppet

Ref. no. : 1-11229, 015384-1 /
010011-1

Bronze Seal Backup

Ref. no. : 1-11134, B-1465-1,
TL-001019-1

Piston Snap Ring

Ref. no. : 1-12371, A-0270-300

Low-pressure Seal
Repair Kit

Ref. no. : 1-11286, B-1163-1 /
TL-001021-1

Electrical Shift and Pilot Assembly 24-volt Rexroth

Ref. no. : 1-11733, A-18862

Mechanical Shift Guide Cable, Left

Ref. no. : 1-12801, C-5462-1

Hex Nut

Ref. no. : 1-11472, A-1000

Tie Rod

Ref. no. : 1-11471, B-1000-2

[wp_post_nav display_previous=”false”]

HyLoad Hydraulic Piston

Ref. no. : 1-12349, TL-001013-1

Inlet Poppet Housing

Ref. no. : 1-11232, 010564-1 /
TL-001022-1

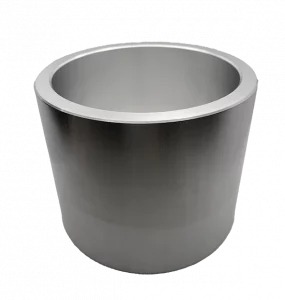

Hyload Piston Installation Tool

Ref. no. : 1-13718

Plunger Retainer

Ref. no. : 1-11437, 007029-1, 100011-1

2 Liter Attenuator
Assembly, 60K with Guard

Ref. no. : 1-16403, 12692

Output Adapter, Hybrid

Ref. no. : 1-12363, 100022-2 /
TL-001024-1

Electrical Shift Valve and Pilot Assembly 24-volt Vickers

Ref. no. : 1-12684, C-2743-1

Pilot Valve, 24-volt Electrical

Ref. no. : 1-11736, A-10544

Shifting Split Pin

Ref. no. : 1-12725, B-1611-1

Hydraulic Manifold,
Side-mount

Ref. no. : 1-12177, 013403-1

Hydraulic Manifold,
Top-mount

Ref. no. : 1-13006

Attenuator Assembly, 1-liter

Ref. no. : 1-12280

Attenuator Assembly, 2-liter

Ref. no. : 1-11595

Piston Assembly

Ref. no. : 1-11446, 010561-1

Plunger Retainer

Ref. no. : 1-11593

Short Block Intensifier with Hyload Hydraulic
Piston H2O Jet/Calypso

Ref. no. : 1-12362

Short Block Intensifier Assembly with Hyload Piston

Ref. no. : 1-12776

Low-pressure Cylinder

Ref. no. : 1-12599

Retaining Screw

Ref. no. : 1-11233, 004380-1

Retrofit Kit to ESL

Ref. no. : 1-11422, 01028-1
